Another thing worth mentioning here is the fan step up and step down delay options.

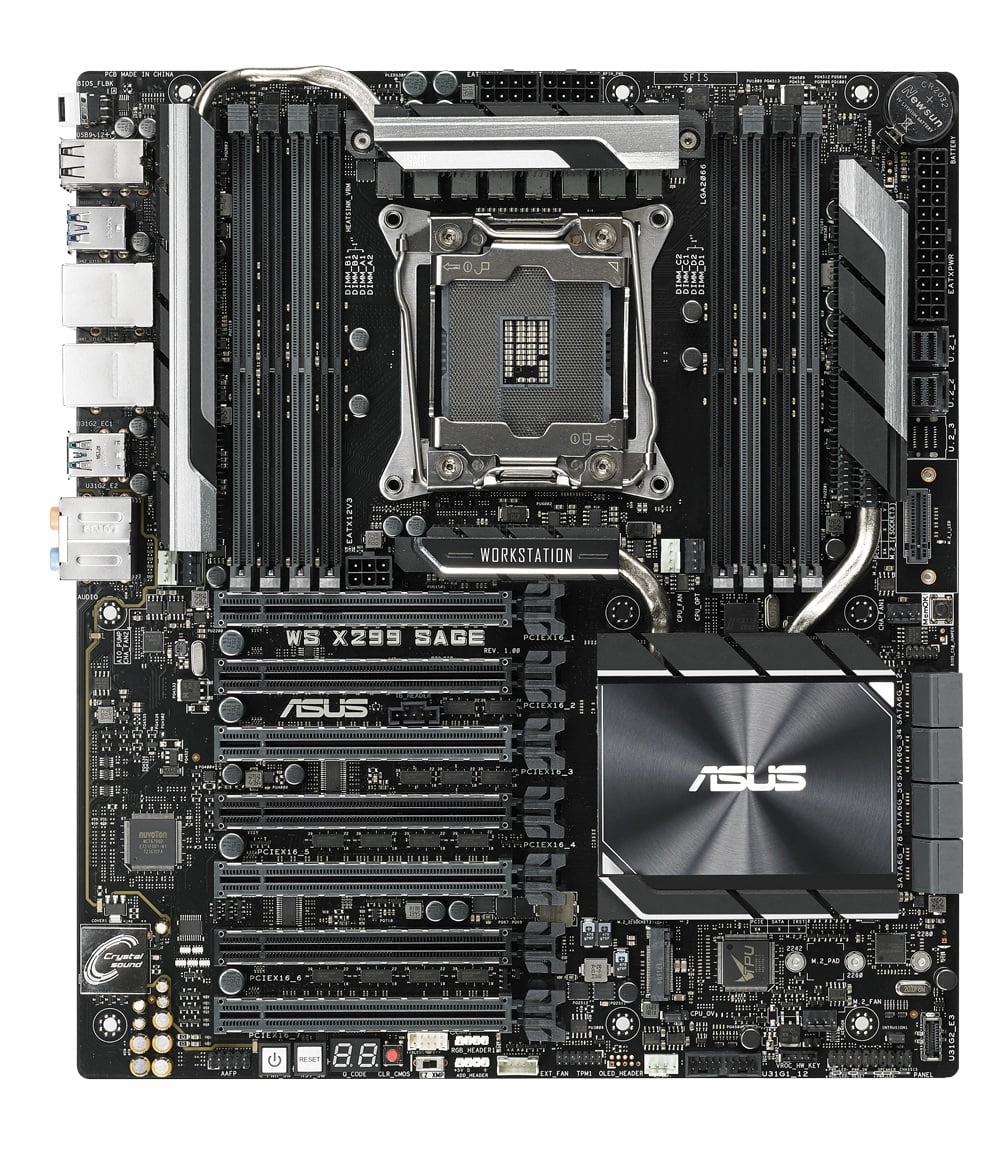

Ext fan on motherboard. Exclusive fan extension header for ASUS motherboards Supports 3 additional DC or PWM fans for maximum cooling Easy, flexible control via Fan Expert 3 & 4, including auto-fan calibration and fan profiling Three thermistors can be placed on any surface, allowing the connected fans to respond to any temperature changes Extreme. Hey guys, on todays episode we learn about the difference between 3-pin and 4-pin fans, and whether one or the other performs better for cpu cooling. 650 - 00 RPM +/- 10% Air Flow:.

Plug two of these cables together to get 2 feet of extension. My motherboards the Asus maximus X hero, it has CPU_FAN, CPU_OPT, H-AMP, EXT_FAN, W_PUMP, AIO_PUMP connectors The cooler is the Kraken X62 280mm, it's manual says to use CPU_FAN for the pump, but the mobo manual says use AIO_PUMP for the pump and CPU_FAN and CPU_OPT for the 2 rad fans. Supports 5th Generation Intel Core™ i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1150);.

Exclusive fan extension header for ASUS motherboards Supports 3 additional DC or PWM fans for maximum cooling Easy, flexible control via Fan Expert 3 & 4, including auto-fan calibration and fan profiling Three thermistors can be placed on any surface, allowing the connected fans to respond to any temperature changes Extreme. EXS_FAN rpm is based on M.2_1 temperature in smart fan mode. Case Fan Bearing Type:.

• The EXT_FAN connector supports 2 of 5 thermal sensor sources. More Can I adjust the EXT_FAN rpm in smart fan mode, if I don't install Thermistor cable on motherboard?. 1 Year Manufacturer Warranty;.

Value for money as the G41 chipset capable to handle embedded computing applications needing HD video playback and 3D graphics. The FAN4EXT12 12-inch 4-Pin Fan Power Extension Cable lets you extend the power connection between a computer power supply and a 4-pin fan by up to 1ft, enabling you to conveniently install the fan where needed in the computer case, without having to stretch or strain the connection. Page 49 • The CPU_FAN connector supports the CPU fan of maximum 1A (12 W) fan power.

Personally, I divide them according to Intake and Exhaust, putting the. Standard Return Policy $21.99 –. ASRock Computer Motherboards, ASRock Computer Components & Parts, Asrock Z77 Extreme4, 5 - 14 ft Cable USB 2.0 Connector An USB Cables, 5 - 14 ft Cable USB 2.0 Connector An USB Extension Cables, ASRock Computers, Tablets & Network Hardware, ASRock Computer Motherboard & CPU Combos, USB HDMI 2.0 Connector B, USB 2.0 Connector An USB Extension.

(30.5 cm x 24.4 cm).The motherboard is located in the somewhat more mainstream. More fans isn't really necessary for that build, just the ones the case came with should be sufficient. The point of this guide is to show the latest and greatest in fan control technology on Intel Z270 motherboards and to help you understand what each brand has to offer.

INSTALLING THE FAN EXTENSION CARD Screw the two metal L brackets to the Fan Extension Card. • The CPU_FAN, CHA_FAN, and EXT_FAN connectors support the ASUS FAN Xpert 3 feature on X99 platform. 59 CFM +/- 10% Model #:.

If you would like the cable sleeved you may choose any colors using the options below. The LG75 socket on Motherboard supports Intel CPUs from 1.8 to 3.8 GHz with Front-Side Bus frequencies ranging from 533 MHz to 1333 MHz;. You can still control fans in two groups:.

Letting the motherboard control all the available fan will just mean something, first, more energy running throught the motherboard, also more work to the voltage and pulse regulators so increased the work temperature for the motherboard i've tested in several motherboards, letting to control fans translate to 3-5C in the motherboard temp. Mon, 01 Jul 19. Product Details:This cable plugs into the motherboard and gives you an extra foot (12" / 305mm) of cable to allow you to route the cable around and out of site.

In fact, there are a number of ways to do so. ASUS X99-A Motherboard Review Introduction. Fancasee 4-Pin PWM Fan Power Supply Cable 1 to 5 Splitter 5 Way PC Case Internal Motherboard Fan Power Extension Cable Cord Wire for ATX Computer Case 4-Pin and 3-Pin Cooling Fans (13 inch, Black) 4.6 out of 5 stars 695.

Plug two of these cables together to get 2 feet of extension. Product Details:This cable plugs into the motherboard and gives you an extra foot (12" / 305mm) of cable to allow you to route the cable around and out of site. Page 50 1000W power or above to ensure the system stability.

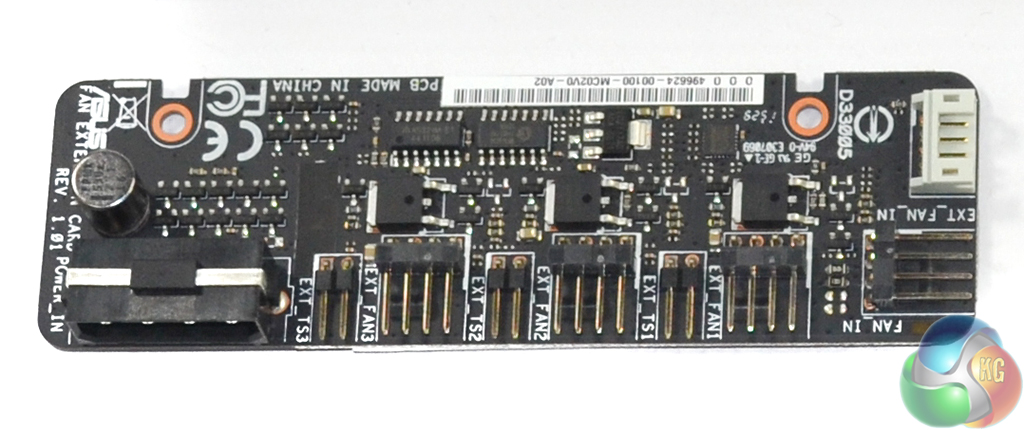

FAN EXTENSION CARD Features:. The ASUS Fan Extension Card makes it easy to add three additional 12W fans to your setup. Please help find ext_fan cable.

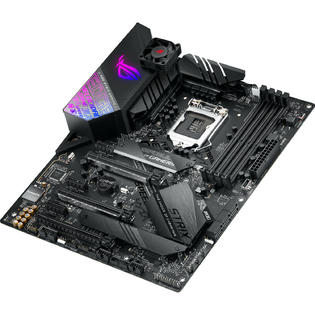

- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) - 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) - 1 x Power Fan connector (3-pin) - 1 x 24 pin ATX power connector - 1 x 8 pin 12V power connector (Hi-Density Power Connector) - 1 x SLI/XFire power connector - 1 x Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports). I have an ASUS Prime Z270-A motherboard in my pc. The latest enhancements are part of the full Fan Xpert 4 package available on our ROG and Strix boards in addition to the Prime Z370-A.

Once you know, you Newegg!. I would like to buy a couple more fans since I plan on overclocking my CPU. • If you are uncertain.

Rev_slider alias="asus-rog-product-slider" slidertitle="Asus ROG Product Slider"/rev_slider. Is an extension of. If you would like the cable sleeved you may choose any colors using the options below.

Can I adjust the EXT_FAN rpm in smart fan mode, if I don't install Thermistor cable on motherboard?. CPU and CHA -- IF. Individual fans can now be linked to multiple sensors, including the GPU diode on compatible graphics.

It's ideal for high-performance air or water-cooled PCs — providing maximum cooling for marathon gaming sessions. The ext means extension. Easiest solution is ignore the EXT_FAN, just get a passive splitter cable.

INSTALLING THE FAN EXTENSION CARD. Mount the Fan Extension Card to the ODD bay*, carefully checking that L brackets are aligned with the ODD mounting holes. ASRock Super Alloy, - XXL Aluminum Alloy Heatsink, - Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke), - Dual-Stack MOSFET (DSM), - NexFET™ MOSFET, - Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors), - Sapphire Black PCB;.

Posted by 4 years ago. System board architecture The following figure shows the HP xw4600 Workstation system board block diagram. It seems the FAN 2 setting is also controlling FAN 3 and FAN 4, and they are ignoring their own settings.

4 x Chassis Fan connector(s) (4 x 4 -pin) - 1 x 5-pin EXT_FAN(Extension Fan) connector. FAN EXTENSION CARD Features:. Cooler Master MasterFan SF1R RGB 1mm Square Frame Fan w/ RGB LEDS, Hybrid Blade Design, Cable Management and PWM Control Fan.

I acquired from eBay an ASUS Fan Extension Card but it has no cable to connect to my motherboard. It's a 5 pin connector. Buy EVGA GeForce RTX, Get Deliver Us The Moon Jul 31, 19 · It's tiny compared to those on MSI's X570 boards, but here at least the fan is shielded.

Product features The following sections describe the HP xw4600 Workstation system board architecture and components. 2 fans to 1 motherboard fan connector (2 sets of these for 4 fans). First, if you know the power ratings of your fans and of your motherboard, you may be able to use a splitter such as the Rosewill Case Fan PWM Cable Splitter.

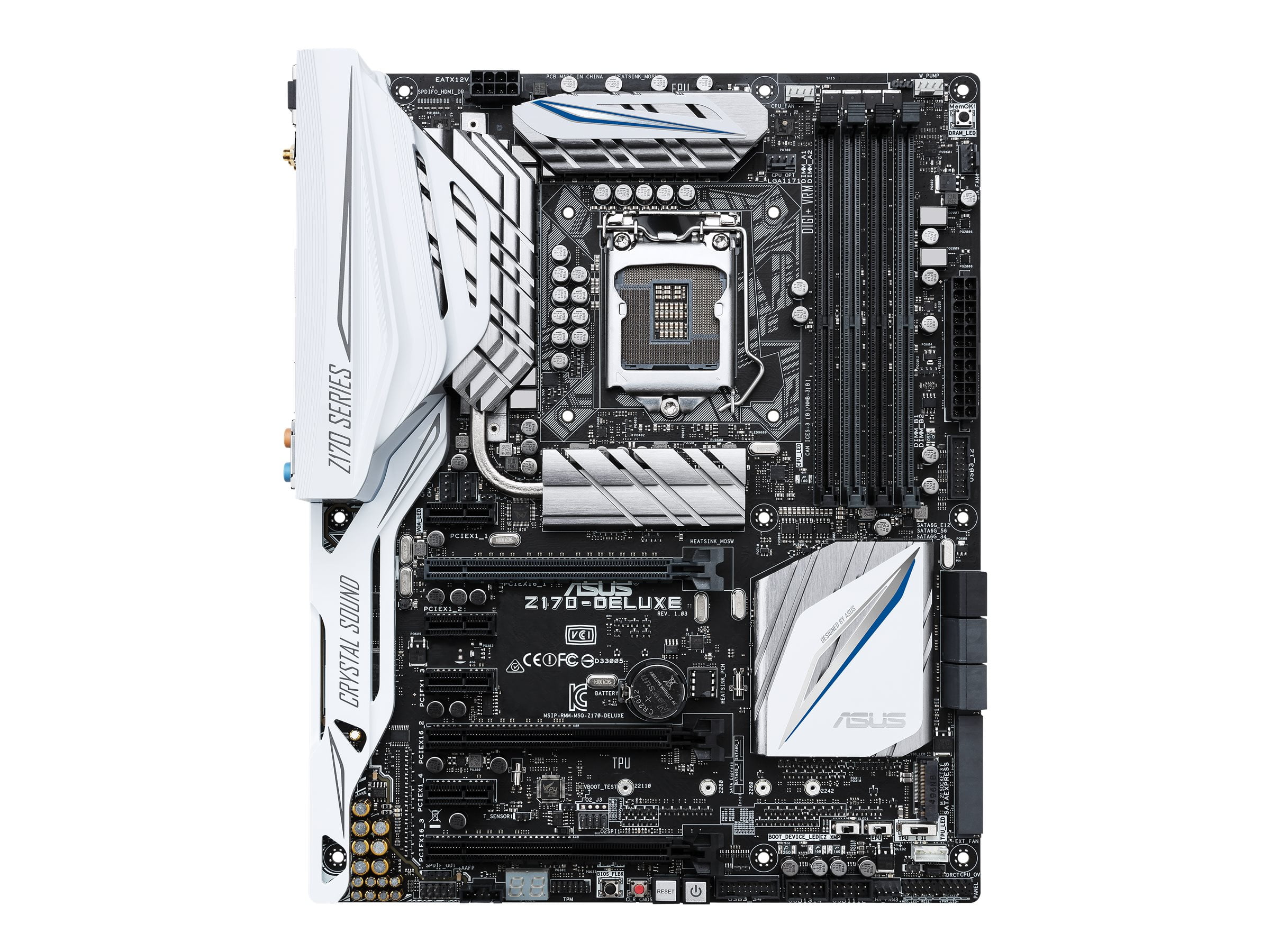

All Combos tested before dispatch. Also it require to constant opening closing programs. I recently purchased a Z170-E motherboard and seem to be without all the fan headers I would like.

You have decent fan control of at least one CHA fan port. The motherboard comes with seven fan headers and one T-Sensor, but you can add more of each by purchasing the Fan Extension Card and control fans hooked to it in the same manner. If you didn't install Thermistor cable on motherboard, please adjust EXT_FAN rpm only in DC mode.

*If there aren't any ODD bay mounting holes, the Fan Extension Card can be mounted anywhere within the chassis. 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK!. Screw the two metal L brackets to the Fan Extension Card.

Insufficient air flow inside the system may damage the motherboard. System cooling is best managed by the motherboard, and our critically acclaimed fan controls make it easy. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) Connect the fan cable to the fan connector on the motherboard, ensuring that the black wire of the cable matches the ground pin of the connector Do not forget to connect the fan cables to the fan connectors.

Get it as soon as Fri, Oct 16. The ASUS X99 Deluxe AC follows a standard ATX form factor, that would be 12 in. The ASUS boards will handle fan-control for either 3-pin or 4-pin fans from those ports.

However I may make it to a total of seven fans but my motherboard has 6 fan slots and one AIO pump slot. AMD Ryzen 9 Twelve Core 3.8GHz Processor, 32GB HyperX DDR4 30MHz Memory, Gigabyte X570 AORUS ELITE AMD Socket AM4 X570 Chipset ATX Motherboard, Pre-Assembled & Tested, Mfg Code:. Specifications Manufacturer Part Number:.

According to my motherboard manual, there are 3 system fan headers, 1 "power fan" header and, of course, 1 CPU fan. Button(s) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Water Pump header (4-pin) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x 14-1 pin TPM connector. The ext fan header is for attaching another fan that will be controlled the same as the fan header is that that ext.

The X99-A is the base level board in ASUS' Intel X99 line of motherboard offering. If you’ve accidentally bought too many fans for the number of headers on your motherboard, then you may want to consider buying a fan extension card – although, again, make sure your motherboard actually has a EXT_FAN header before you get one. PU_FAN CHA FAN CPU_OPT 3 BOOT_DEVICE_LED MGA LED GRAM LED PULLED 6 DVI PWR LEDO LGA1151 USE1314 1 LANT_USIG1_56 LANG DDR4 DIMM_B1 (64bit, 2-pin module) DDR4 DIMM_B2 (64bit, 2-pin module) DDR4 DIMM_A1 (64bit, 2-pin module) DDR4 DIMM_ (64bit, 2-pin module) EATXPWR 3 30.5am (1 2in) AUDIO CON_BAOOO CHA FIND IT 7 ND PUMP POIE_X1_1 0 M.2.

Such a splitter connects two. Instead, use the motherboard fan ports and preferably those designated as "case-fan" or "system fan" ports. I am currently using the CPU_Fan slot, the H_Amp_Fan slot and CHA_Fan 1 and 2 slots.

Buy ASUS Fan Extension Card with fast shipping and top-rated customer service. Please help find ext_fan cable. Image A - 0 RPM on 3 & 4 even though they are set at 90 and 100% Image B - But as soon as I set the FAN 2 speed, all 3 increase, and clearly FAN 3 is not running 100%, and neither is FAN 4 EXT FAN 1 works fine and I guess 2 does also albeit controlling 3/4 along with it.
